Tunnel Dryer Process - Conveyor Drying & Curing for Garment Transfer Production
Tunnel dryer

Tunnel dryer

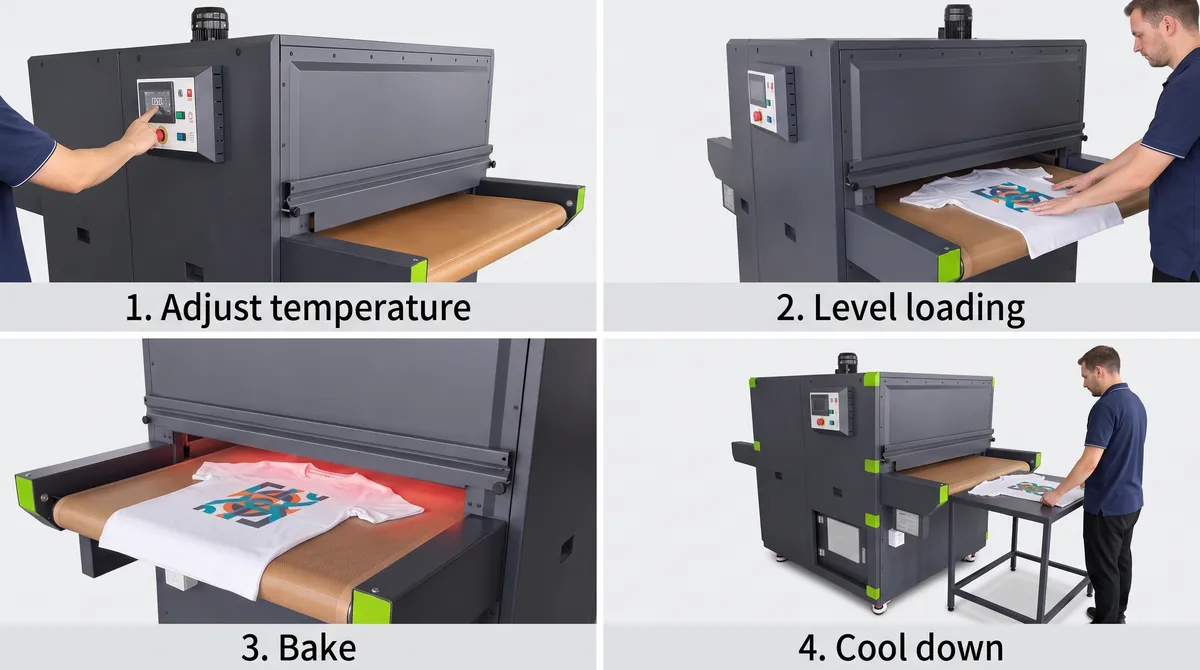

Tunnel dryer machine operation procedure: Adjust the temperature controller to set the required baking temperature parameters to ensure precise and stable temperature. Place the materials to be dried flatly on the conveyor belt or tray, ensuring uniform heating of the materials. Start the drying machine for the baking process, and the materials achieve the effect of moisture evaporation and curing through the heating zone. After the baking is completed, the materials are cooled in the cooling zone to ensure complete cooling before being removed, completing the entire drying and curing operation procedure.

Tunnel dryer

Flash Hot-set DTG / Tunnel Drying

Flash Hot-set DTG / Tunnel Drying

Flash Hot-set DTG / Tunnel Drying is a continuous conveyor-type curing equipment specially developed for DTG printing, screen printing and textile post-press drying processes. Modular heating chamber structure with stainless steel body delivers uninterrupted in-line drying and curing operation. Supports water-based pigment inks, plastisol inks and DTG white inks for T-shirts and fabric applications.

Key Specifications

Specification Item: Flash Hot-set DTG / Tunnel Drying
Heating zone length: 2000-3000 mm
Conveyor belt width: 600-800 mm
Temperature range: Room temperature - 250°C
Belt speed range: 2-16 m/min
Rated power: 7.2-12 kW
View Details
Flash Hot-set DTG / Drawer Dryer

Flash Hot-set DTG / Drawer Dryer

Flash Hot-set DTG / Drawer Dryer is a continuous conveyor-type curing equipment specially developed for DTG printing, screen printing and textile post-press drying processes. Modular heating chamber structure with stainless steel body delivers uninterrupted in-line drying and curing operation. Supports water-based pigment inks, plastisol inks and DTG white inks for T-shirts and fabric applications.

Key Specifications

Specification Item: Standard Parameter
Heating zone length: 2000-3000 mm
Conveyor belt width: 600-800 mm
Temperature range: Room temperature - 250°C
Belt speed range: 2-16 m/min
Rated power: 7.2-12 kW
View Details
