3D PU Patches

Name: 3D PU Patches
Brand: garmenttransfer
SKU: 3D PU
Availability: InStock

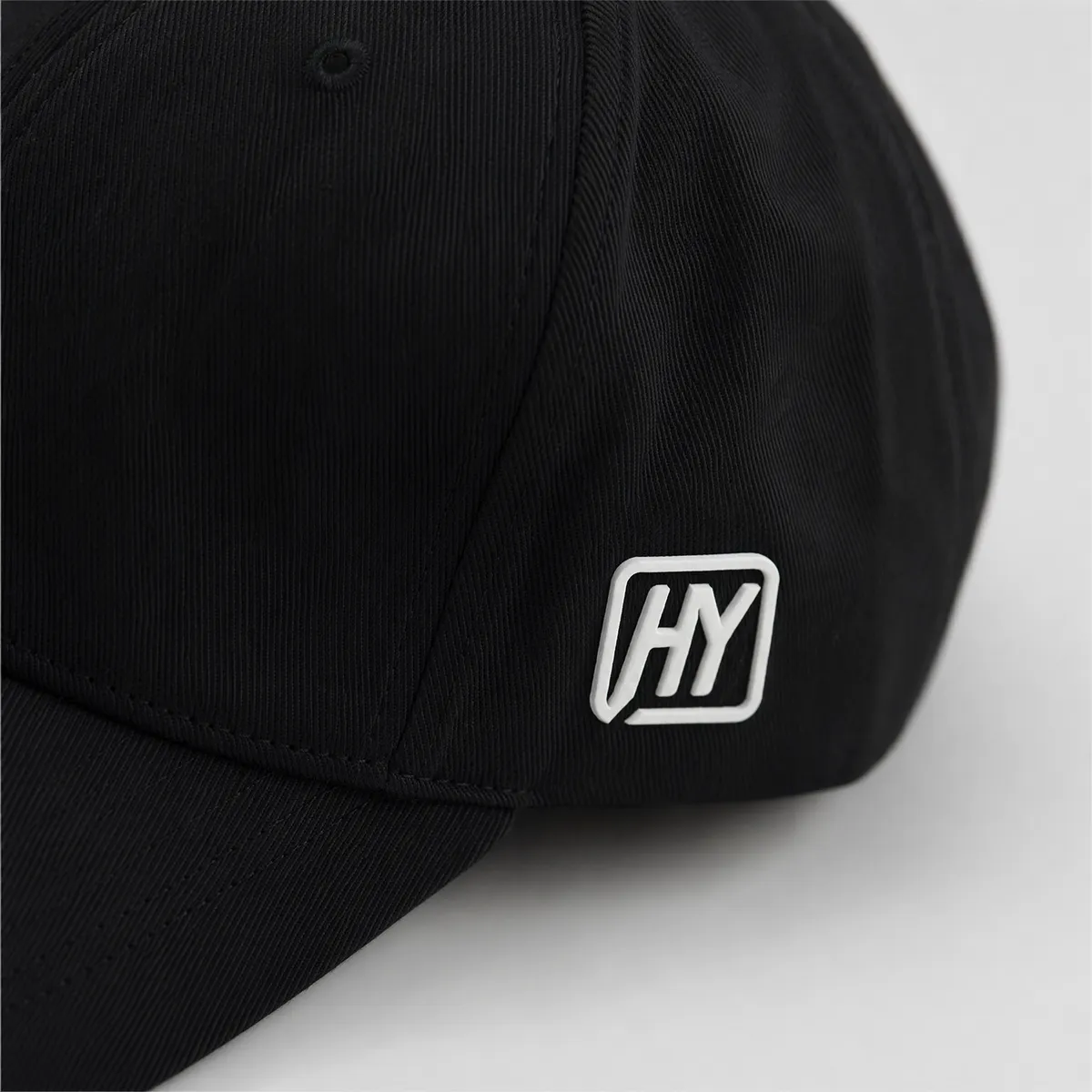

This 3D PU transfer label is created through a foaming process to achieve a full and 3D effect. The PU material is flexible and durable, and the heat transfer and adhesive application are firm. It won't collapse or fall off after being washed, and has a distinct and attractive 3D appearance.

Technical Specifications | 3D PU Patches

This premium heat transfer material is created through foaming process to achieve full and 3D effect. Flexible and durable PU material with firm heat transfer and adhesive application. Wash-resistant without collapsing or falling off, with distinct and attractive 3D appearance.

Key Features

Pre‑Foamed, Stable Thickness – Offers a permanent raised effect thanks to the material's own thickness , with no change in dimension during heat transfer; guarantees consistent results every time.
Soft & Cushioned Touch – The micro?cellular foam structure provides a gentle, skin?friendly feel, comfortable against the skin even on large?area prints.
Excellent Elasticity & Recovery – Highly flexible and stretchable, conforming to fabric movement without cracking or losing shape, even after repeated stretching.
Strong Adhesion & Durability –Colours stay vivid, with no peeling or fading after multiple laundry cycles.

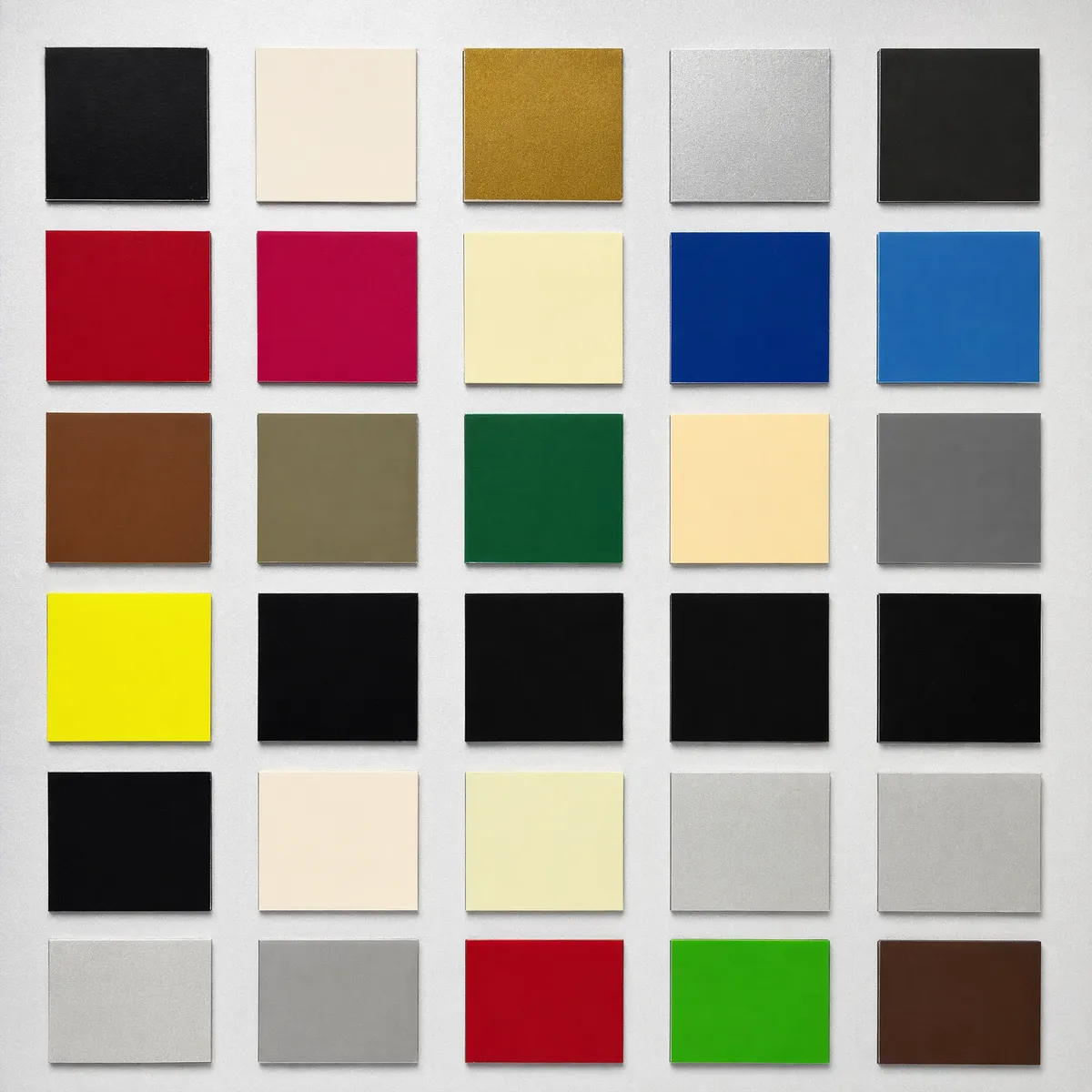

Crisp, Saturated Colours – Dense pigment layer delivers bold, opaque coverage on both light and dark substrates, with a matte or semi‑gloss finish.
Easy to Cut & Weed – Compatible with standard vinyl cutters; precise cutting and clean weeding, even for intricate details, thanks to a stable liner.

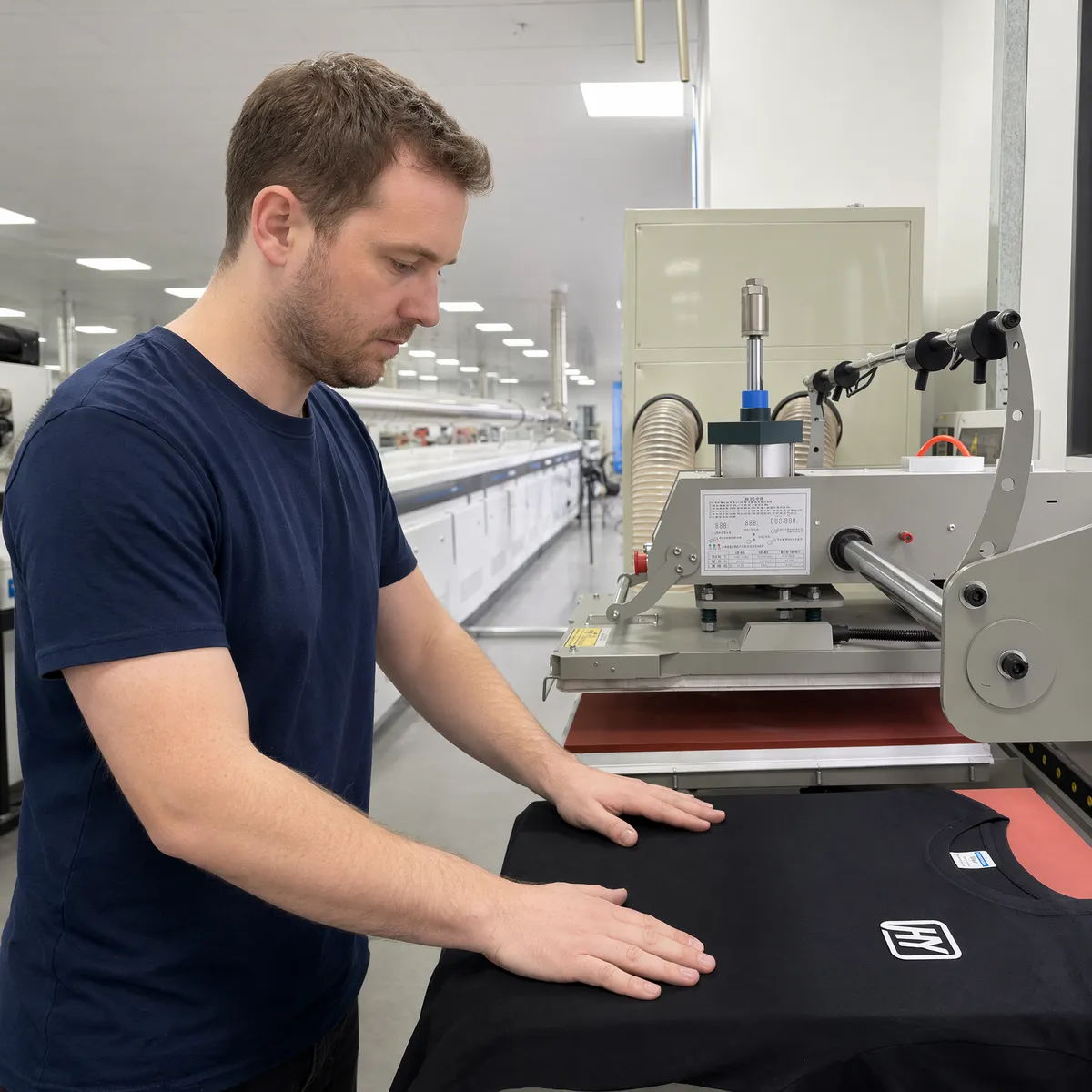

Process Parameters

Essential product specifications

Process

3D PU Foam Heat Transfer Vinyl

Heat press temperature

145-155° C

Heat press time

12 – 15 seconds

Heat press pressure

0.3-0.5 MPa

Positioning film

Cold peel (tear)

Applicable fabrics

Polyester, nylon, cotton blends, coated textiles

Material Properties

Physical properties

Thickness range

0.5 - 1.0 mm (customizable)

Environmental certifications

OEK0-TEX® Standard 100, REACH IS014001

Colorfastness to rubbing

≥4(IS0 105-X12)

Colorfastness to washing

≥4 (ISO 105-C06)

Minimum reproducible detail

1.0mm text or line

Your Trusted Global Partner

Ready to Get Started?

For a free technical consultation, quote, samples, and custom specifications on PU /TPU Patches, contact us—no obligation.

500+

Satisfied Clients

10000+

Orders Fulfilled

Mon - Fri, 8:00 - 17:30

Office Hours

Tel: +86 0769-83000517

Email: [email protected]

Application Scenarios

3D PU Patches are premium heat transfer labels created through foaming process to achieve full and 3D effect. Features flexible and durable PU material with firm heat transfer and adhesive application, wash-resistant without collapsing or falling off, distinct attractive 3D appearance for various apparel applications
