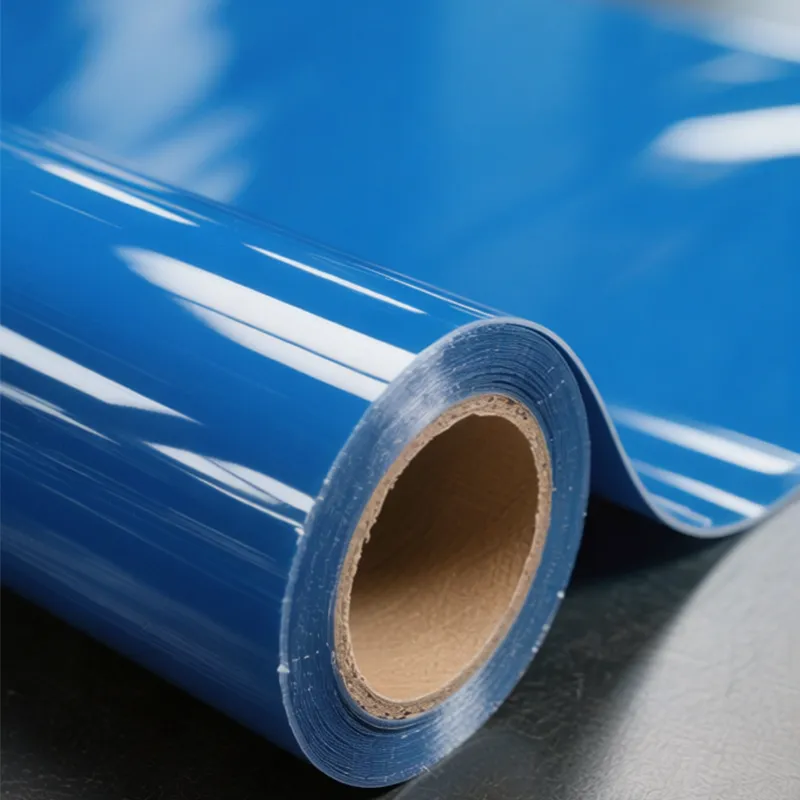

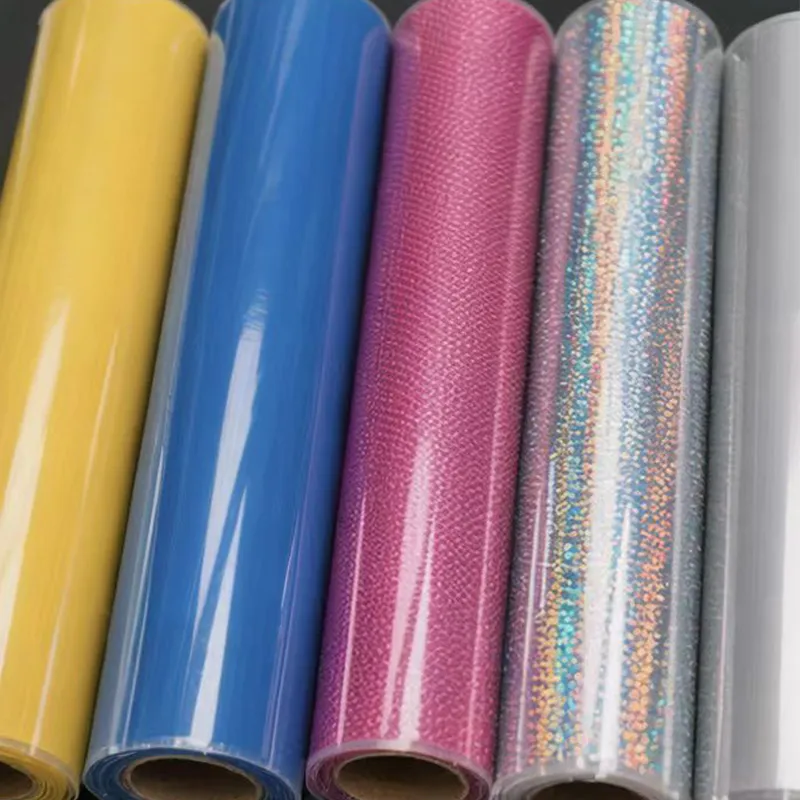

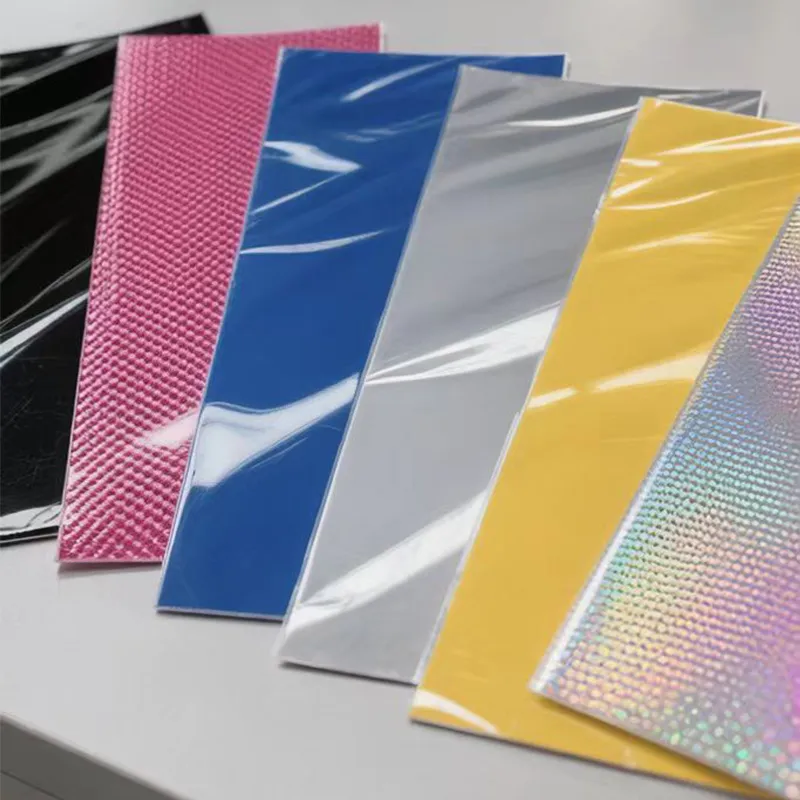

Silicone Heat Transfer Vinyl
Our silicone HTV offers exceptional properties tailored for athletic fabrics: a highly stretchable, ultra-durable heat transfer vinyl with a soft matte finish. This innovative product harnesses the inherent resilience and superior elasticity of pure silicone, with optimized processability for user-friendly, consistent heat transfer application.
Key Features:
Process Parameters | Technical Limits & Test References
This silicone HTV process targets repeatable results across mixed fabric lots. Minimum reproducible detail is 0.1mm with 600dpi artwork, and durability is validated at ≥ Grade 4 wash fastness and ≥ Grade 4-5 rub fastness under controlled evaluation. For color-sensitive polyester programs, a practical check is ΔE* drift after accelerated laundering (e.g., AATCC 61 conditions), which helps operators catch dye interaction before full-scale output.
Product Specifications
Silicone lettering film and transfer marking process flow
Silicone lettering film and transfer marking process flow

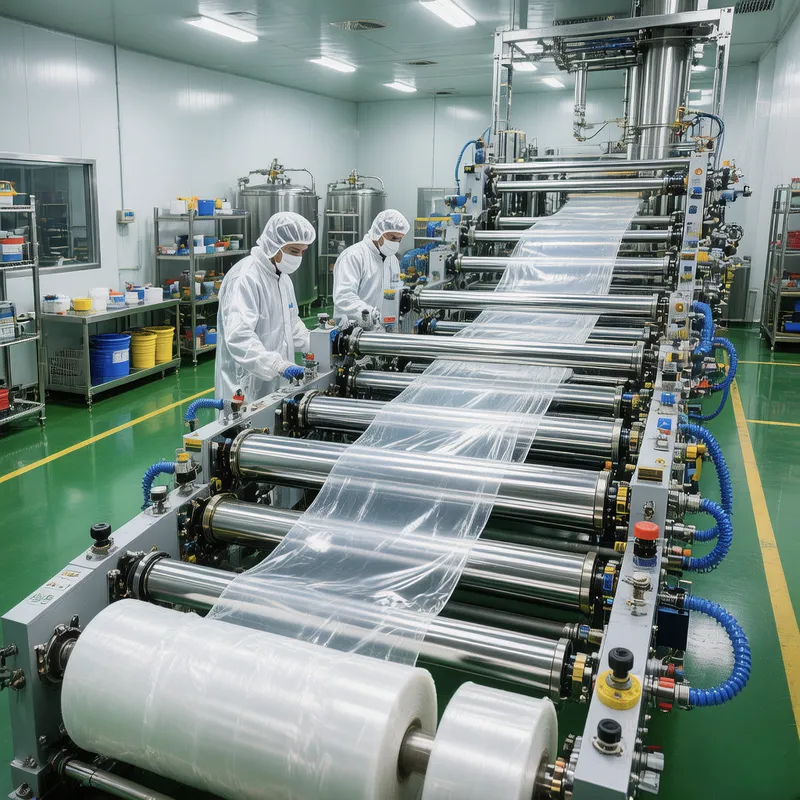

1. Ingredient Preparation & Substrate Pretreatment
With two-component addition-cure liquid silicone rubber (LSR) as core material, complete compound weighing, mixing, high-vacuum defoaming, and pass core tests (viscosity, curing activity). PET release liner undergoes corona treatment and constant-temperature preheating to adjust surface tension, remove moisture, static and impurities.
2. Coating, Curing & Slitting
Qualified silicone compound is fed into slot die coating system, evenly coated on pretreated PET liner, with tight control of thickness and flatness to avoid appearance defects. Coated film passes through multi-stage online curing oven to form silicone HTV base film, then CNC slit and rewound to target specifications.

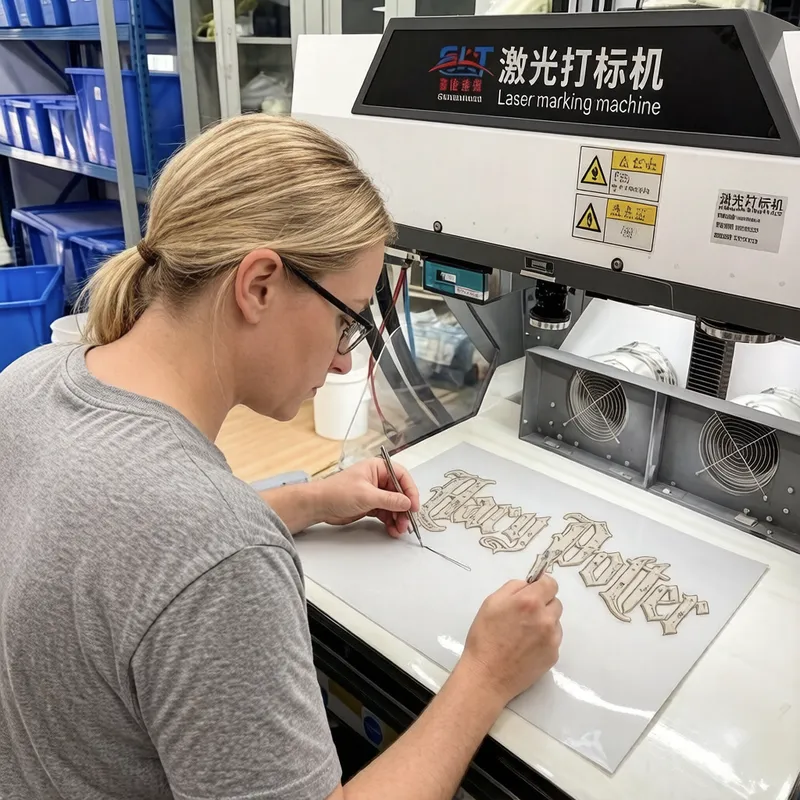

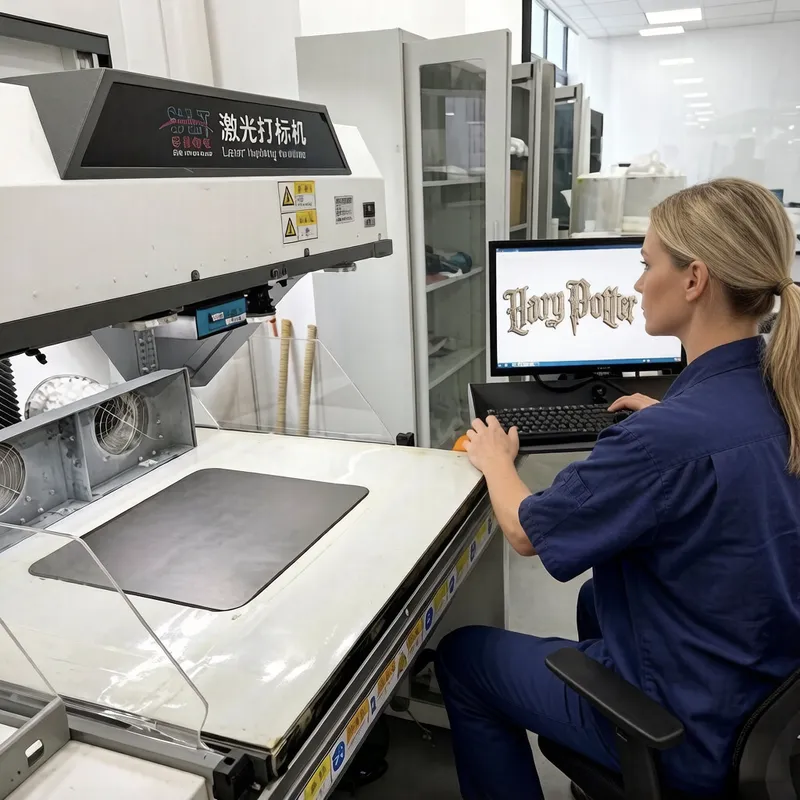

3. CNC Pattern Engraving
Place the split and finished pure silicone engraved film onto the CNC engraving equipment, import the vector file of the transfer mark pattern confirmed by the customer, set the engraving parameters suitable for the silicone material, and carry out the engraving of the pattern outline.
4. Pattern Weeding & Transfer Label Preparation
Engraved film is transferred to weeding station, excess silicone and inner hollow waste are removed via peeling and suction devices. Qualified products are CNC slit to specs.

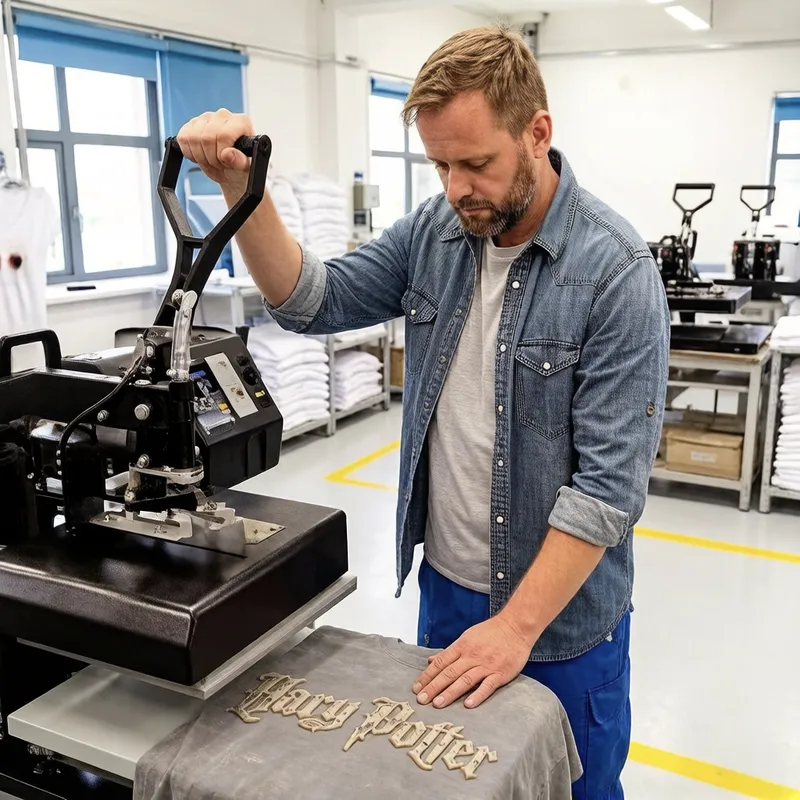

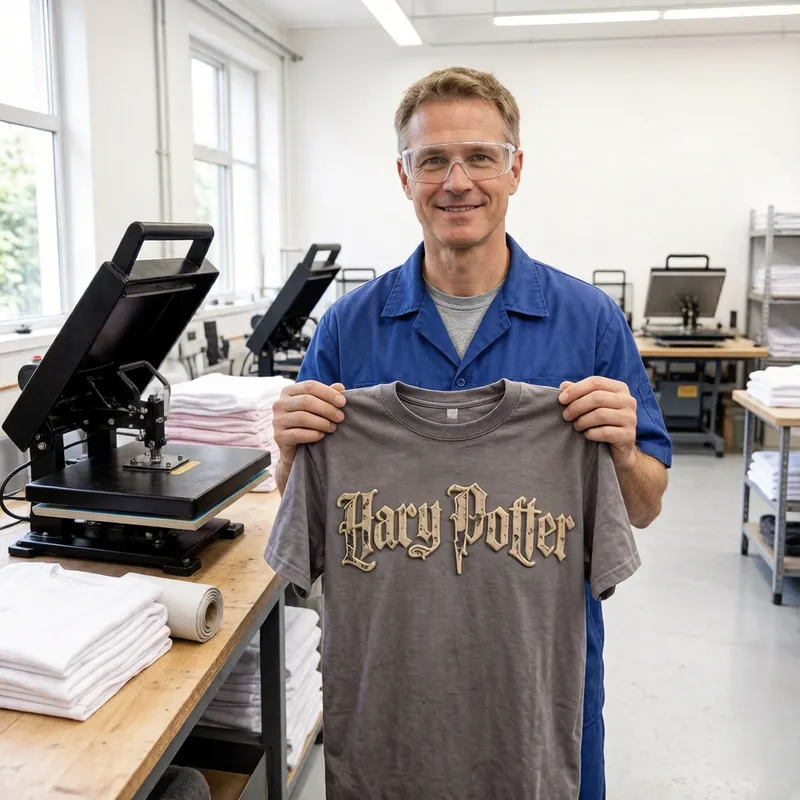

5. Garment Heat Transfer & Final Inspection
Silicone transfer label is accurately positioned on garment fabric, then heat pressed with silicone-specific temperature, pressure and time parameters. Peel off release liner after transfer; secondary low-temperature curing is optional to improve fastness. Full production is completed after passing appearance and fastness inspection.
Core advantage Silicone Heat Transfer Vinyl
Core advantage
1. High Stretchability and Recovery
It offers excellent stretch and recovery properties, ensuring that designs stay intact and look great even under extreme physical activity. Note: Store rolls at 16–24°C and keep liner edges protected to reduce curl.
2. Dye-Color Migration Blocking
Similar to our Sub Block product, Silicone PU effectively prevents dye-color migration, ensuring that colors stay vibrant and true on all types of fabrics. Warning: Test dark polyester lots before bulk production to confirm no bleed-through.
3. Eco-Friendly
Committed to sustainability, Silicone PU is made from environmentally friendly materials, reducing the ecological footprint of your projects. Important: Keep materials sealed after use to avoid dust pickup that can affect surface finish.
Application Scenarios | Where Silicone HTV Creates ROI
These scenarios emphasize sellable outcomes—comfort, durability, and consistent brand appearance—without overloading operators with unnecessary technical details.
Fashion & Lifestyle Apparel
Ideal for premium brand logos and decorative motifs on t-shirts, hoodies, and casual wear. Enhances garment appeal with a distinctive three-dimensional texture and superior color retention, maintaining vibrancy through repeated washing cycles.

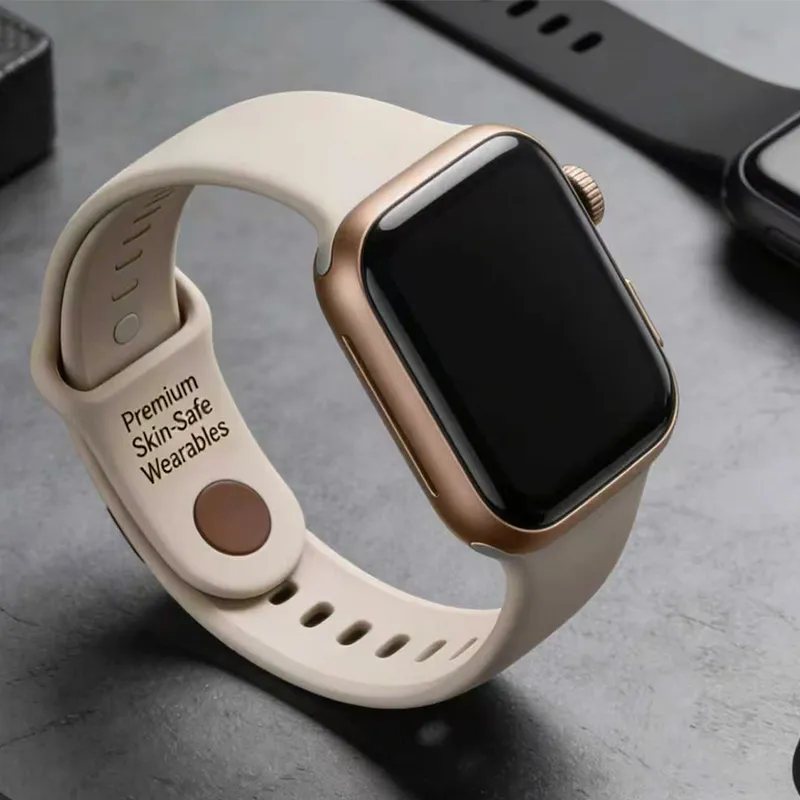

Watch Straps & Wearables
Apply refined, skin-safe branding to smartwatch bands and wearable accessories. The hypoallergenic silicone layer bonds tenaciously to TPU and fluoroelastomer substrates, delivering subtle tactile markers that resist daily friction, moisture exposure, and skin oils without irritation.

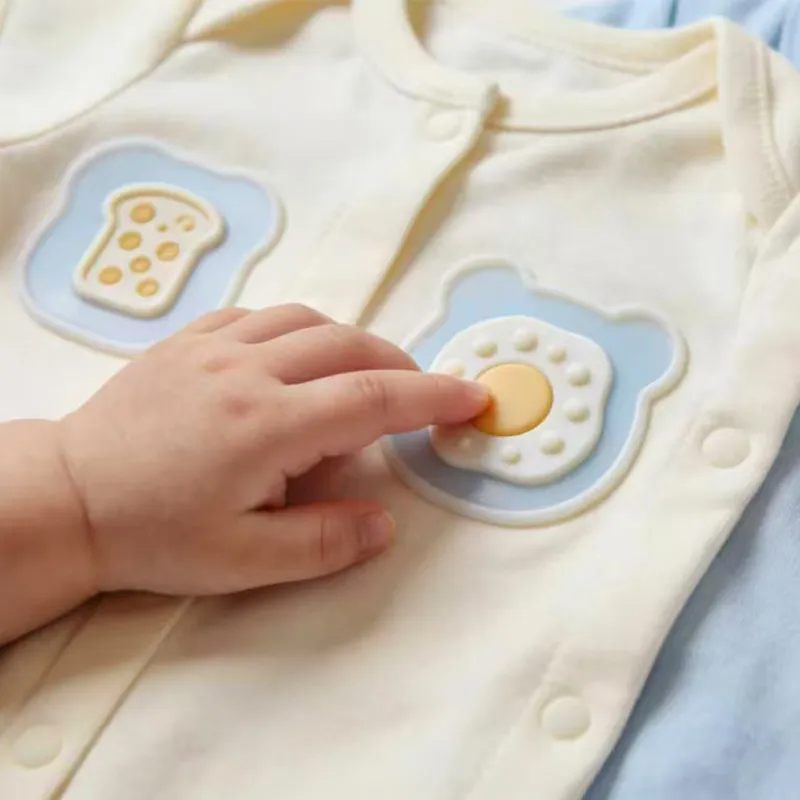

Baby clothes
Apply gentle name labels and size markers to bibs and rompers. The hypoallergenic silicone withstands boiling sterilization and aggressive stain removal, maintaining legibility and adhesion through countless laundry cycles.
Outdoor Gear & Technical Apparel
Built for UV, moisture, and temperature swings, ideal for hiking jackets, backpacks, and camping gear.
